We are
Jubilee
Electronics

Specialists in the Design, Manufacture and Commissioning of Electronic Systems.

We design and manufacture high quality, high reliability, innovative electronic products for a range of applications and industries.

Our rare combined design and manufacturing capabilities enable us to develop innovative electronic products, on a short timeframe, from concept through to final production and manufacture.

With 40 years of specialist experience, we offer a full turnkey solution for all your electronic engineering needs.

COVID-19 UPDATE:

Following new UK Government Covid-19 advice, and to ensure the safety and well-being of our staff, we are reducing our on-site staff to a bare minimum for the time being.

On site staff will only be called in to cover essential business requirements, that cannot be completed remotely.

Design and production staff are now working from home, and can be contacted via email and mobile.

As we are diligently following UK Government advice and guidelines, there may be some delays experienced with manufacturing and production work.

However, we are regularly monitoring the situation, and will return to work in full capacity when deemed safe to do so by the UK Government.

For the quickest response to questions and queries: please contact us via email and mobile.

Take care and keep safe,

The team at Jubilee Electronics.



Design

We have over 30 years of experience in electronic design, covering a wide range of industries including: Security Services, Healthcare, Power, Vehicle Manufacture, HVAC etc.

We offer a range of design services to bring your project from initial specification through to a finalised, production ready, design.

Click here to see how we provide a complete design service for your electronic product.

Hardware

Software

PCB Design

Product Design

Hardware

We can design equipment that ranges from monitoring circuits running for several years from a small battery, to circuits controlling several kilowatts.

Working down to component level allows us to design and manufacture equipment to our client’s exact specifications. We can combine different circuit topologies to meet our clients design requirements.

Our experience with mechanical and practical aspects of hardware design also enables us to offer a design process which takes into consideration all aspects of a project, considering the ‘bigger picture’.

Many companies offer to connect standard modules together to try and achieve a control function. However, without a detailed knowledge of how the modules work at component level, a suitable design is usually not produced, and informative support cannot be offered.

This is not the case at Jubilee Electronics. We pride ourselves on the support that we provide our clients, and the close contact and consultation that we maintain with our customers through all stages of the design process.

Please see our Gallery area for further information and examples.

Services include

  • DC Design
  • Audio Design
  • Logic Design
  • General Analogue Design
  • Radio Frequency Design
  • Pneumatic Control Design
  • Hydraulic Control Design

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Software

We have been developing software for electronic systems for over 30 years. The majority of our designs contain some element of embedded software.

Our software is developed in-house, and in close harmony with the development of the associated hardware and production design.

Some examples of our work include:

  • Precision motion control applications, open and closed loop
  • Hydraulic and pneumatic machine control
  • Control system “Parts and jobs” library integration
  • Real time data monitoring solutions
  • User interface design, including touch based systems
  • Specialist vehicle control systems

Because we are in complete control of our software development, we can respond rapidly, making changes as projects develop. New software features can be implemented quickly, sometimes within hours of being specified by our clients.

We have experience designing and supporting systems using a large variety of embedded microprocessors. We are also an authorized Microchip design partner.

We can also supply desktop computer based software solutions, all to your complete specifications. We utilise current Microsoft XAML presentation technology to deliver a modern graphical user interface.

If you have an enquiry you would like to discuss, please do not hesitate to contact us.

Partner_logos-REV-authorized

Our Experience

  • Embedded software development using a wide variety of microprocessors (Atmel, Microchip, Hitachi, ARM, Free Scale etc.)
  • Embedded real time operating systems (RTOS).
  • Integration with a wide variety of communication protocols (RS232, RS485, CAN bus, I-squared-C, USB etc.).
  • Windows Embedded development (including incorporating WiFi + Bluetooth technologies).
  • Windows bespoke desktop software and server development, including custom graphical interface design (integrating Windows Presesntation Foundation).
  • Custom database and application framework development work(ASP.NET, Microsoft.NET, Oraqle MySQL, SQL Server 2005 etc.).

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

PCB Design

We provide a PCB design service that can efficiently produce a working prototype within a very short space of time.

PCBs can be designed and produced from schematics designed by us, or we can also quickly and efficiently convert our client’s schematics to a PCB design, and produce a prototype within a few days to a week.

We can accommodate for multiple layers, SMD and Through Hole component technologies. The PCB design work undertaken at Jubilee Electronics usually combines automatic and manual routing to produce a high quality PCB within a short space of time.

Our PCB design package has powerful checking tools to ensure circuit integrity and eradicatelayout errors. We also use UK based PCB manufacturers to ensure a quality PCB (most PCB’s are now imported from China).

All PCB prototyping and component assembly is also carried out in house to ensure a quick and efficient turn around.

Please see our Gallery area for further information and examples.

Facilities to

  • Load and edit Gerber files if modifications to an artwork produced elsewhere are required.
  • Import mechanical drawings into our CAD system to enable PCB’s to be fitted into unusual spaces.
  • Output 3D images of a PCB design.
  • Modify existing PCB artworks, with support for a wide range of file formats.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Product Design

All design work at Jubilee Electronics is undertaken with the end product and manufacturing process in mind.

We work in close cooperation with our clients to ensure their requirements are met through all the stages of a products development.

With facilities to design, develop, prototype and manufacture in house, the development process of a project at Jubilee Electronics is quick and efficient. We pride ourselves on the quick turnaround we provide from a projects commencement, through to the production of an initial prototype.

Enclosures, assembly details, wiring etc. are all carefully considered from a projects inception, ensuring that when a design is complete, it can easily be transferred through to production.

We also work with local test houses, where necessary, to carry out any EMC or compliance testing required for a product to be brought through to production.

All selected components and technologies implemented on a design are carefully chosen to ensure years of use and reliability.

Please see our Gallery area for further information and examples.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Compliance

Compliance and standards accreditation is becoming an increasingly vital part of the electronic design and development process.

As part of Jubilee Electronics ‘turn-key’ bespoke design and manufacturing service, we closely work with our customers and UKAS accredited test labs to define, test and certify their projects and products to the relevant national and international standards.

Please see below how we can take your project through all the required stages of the compliance and accreditation process.

Compliance Process

Project Review and Compliance Appraisal

Pre-Compliance Testing

Testing and Accreditation

Compliance Process

With our on-site testing facilities, close ties with accredited test laboratories, and application of comprehensive testing methods, we work to ensure your product complies with the applicable standards through the full project development cycle.

At the early stages of a project, we work with you to scope and define the applicable standards. We then undertake the design and development work in careful consideration of these standards and applicable test criteria.

All designs are tested in-house prior to any external lab testing to ensure full functionality. We also have available a suite of test equipment that we can provide for in-house pre-compliance testing (vibration test rigs, temperature controlled test ovens, spectrum analysers, RF measurement instruments, ESD equipment, thermal imaging equipment etc.).

With pre-compliance testing complete, we work with accredited laboratories to have your product undergo an applicable suite of tests (EMC, environmental, safety etc.). Once successfully completed, the project Technical File can be compiled, and the Declaration of Conformity can be issued for the CE (or applicable) Mark.

Compliance and Accreditation Process

  • Identify the applicable Standards and Directives.
  • Ascertain the applicable design requirements and parameters for conformity.
  • Identify and undertake appropriate route of design, test and manufacture to ensure conformity.
  • Pre-compliance testing, assessment and analysis of the product’s functionality.
  • Lab compliance testing and accreditation (using applicable UKAS accredited test lab/s).
  • Compile the Technical Documentation

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Project Review and Compliance Appraisal

We work with you to scope and define the applicable standards and test criteria for your project.

We provide support and experience to guide our client’s through compliance and regulatory requirements including:

  • CE Marking
  • FCC Compliance
  • EMC
  • RoHS Compliance (all design and manufacturing work undertaken at Jubilee is RoHS compliant).
  • RISs
  • Medical Electrical Equipment and Systems (EN 60601).
  • ATEX

We first determine a products main function, market, industry and sales region.

We then review, scope and define compliance and regulatory requirements.

This allows us to define a list of standards to ensure EMC, Safety and Environmental compliance, from which an applicable suite of tests and documentation/certification requirements can be established.

Trying to modify or re-design your product at a late stage in development to meet newly discovered test and compliance criteria, is always a costly and time consuming approach that we strongly advise against.

It is vital to establish and define compliance and goals and requirements from the outset to ensure a project stays on schedule and on budget!

Why budget for defining applicable standards and compliance requirements?

  • If you want to sell your product anywhere, you can guarantee there will be applicable standards and compliance requirements that you must meet!
  • Determining the relevant standards and compliance/regulatory requirements for your project ensures you can plan ahead for the testing and compliance criteria requirements for your intended market.
  • Defining these standards and criteria at the start of a project also allows a more efficient design and development process, as key compliance design criteria have already been ascertained.
  • The Technical File for your project, a vital component for proving compliance, can also be established from the very start of your project.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Pre-Compliance Testing

Pre-compliance testing is an integral part of the design and development process. It can be used to focus and find solutions on areas identified as potential causes for concern.

Testing at UKAS accredited laboratories is expensive. If a product fails, the additional time and expense required to find and resolve the issue, and then re-test the equipment, can put immense strain on a project.

It is important to take pre-emptive measures to avoid failing final testing. Incorporating pre-compliance tests through a projects full development cycle, greatly reduces the chance of your equipment failing at the final (and very expensive) hurdle.

We provide a range of pre-compliance testing services, and have a suite of in-house equipment that can be used to test your product (including automated vibration test rig, temperature controlled test oven, thermal imaging capture, ESD equipment, spectrum analysers and other RF instrumentation).

We also work closely with EMC laboratories to devise suitable pre-compliance test days for products (usually 1-2 days testing), where a suite of RF emissions, RF immunity, voltage transients, ESD etc. tests can be undertaken.

Pre-compliance testing also allows selective testing beyond the parameters and methods as defined by Standards, to efficiently test the equipment in extended operating conditions.

Why incorporate Pre-Compliance Testing into your project?

  • Allows for early identification of errors and issues, and thus speeds up project lifecycle.
  • Testing can be undertaken to compliance standards, from the early stages of a project.
  • Design changes can be incorporated based on real test data and feedback.
  • It reduces the risk of failing final testing and certification.
  • Reduces high costs and time project resources for re-design work and re-testing
  • Creates an agile project cycle where testing and feedback is fully integrated into development

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Testing and Accreditation

With pre-compliance testing complete, all known hardware issues resolved, software at release (or advanced BETA level), and product design ‘locked in’ (including enclosure design and mechanics all finalised), it is time to commence final testing!

We strongly advise clients to ensure that they are ‘release ready’ before commencing with final EMC, Safety and/or Environmental testing, as any changes to a design (even if the equipment has successfully been through a full suite of tests) could result in the equipment having to be re-tested.

We work with a range of UKAS accredited test laboratories to determine a full suite of tests to certify your product complies with relevant standard and regulatory requirements.

We always attend testing where possible, as we find keeping a ‘hands on’ approach at this stage of testing ensures things keep on track and on schedule.

Once testing is successfully complete, the laboratories will provide test reports and certification.

All compliance documentation and certification is then compiled into a Technical File to display the product properly complies with the required standards and regulatory requirements.

A Declaration of Conformity is then raised, from which the CE (or applicable) Mark can be issued, and your product can be placed on the market.

The Technical File will typically include:

  • Technical description and drawings, circuit diagrams, design calculations and photos.
  • Report/List of applicable standards and regulatory requirements.
  • Bill of materials (BOM).
  • Specification and, where applicable, Declarations of Conformity for the critical components and materials used (e.g. for RoHS compliance).
  • Test reports and/or assessments.
  • Instructions and packaging information/documentation.
  • Copy of the Declaration of Conformity.
  • Must be held for a period of up to 10 years after the manufacture of the last unit.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Production

With over 30 years of experience, and in-house capabilities to support initial prototyping through to medium scale manufacture, we can take your finalised design and bring it into production.

We offer a UK based full electronics manufacturing solution for your project.

Click here to see how we provide a complete manufacturing service for your electronic product.

PCB Assembly

Manufacturing

Test and Inspection

Rapid Prototyping

PCB Assembly

Our fully RoHS compliant PCB assembly facilities can support projects ranging from one off prototypes through to high quantity production runs.

We support both through-hole and surface mount technologies, and pride ourselves on the quality and efficiency of our work.

We use a combination of automated SMT assembly lines and hand soldering and assembly techniques. We have carefully chosen our automated assembly equipment (Intelligent Drives iMP placement, vapour phase reflow etc.) to support rapid programming and set up times, making us ideal for fast turnaround projects.

Our PCB’s are manufactured in the UK, and are individually inspected and fully tested after assembly to ensure a quality reliable end product.

Our staff are IPC-A-610 qualified, and we maintain our high standards by incorporating strict quality control procedures, with constant testing and monitoring of all PCB’s and construction processes.

We will happily quote for initial ‘one off’ prototypes through to large quantity assembly runs.

Services include

  • Over 30 years of PCB assembly experience.
  • Support for 1 off prototypes through to high quantity production.
  • Fast turnaround for time critical projects.
  • Hand soldering and assembly for through-hole and SMT PCBs.
  • Fully RoHs compliant.
  • Individual PCB inspection and testing.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Manufacturing

We have been designing and manufacturing high quality, high reliability electronic products in the UK for over 30 years, undertaking projects ranging from quick turn-around prototypes to full production build and testing.

We have years of experience developing manufacturing solutions for a wide range of industries, from small battery powered devices running at uA quiescent current for medical installations, to 3 phase industrial control systems for use in hazardous environments.

Our wide range of capabilities can be utilised as individual services or combined to provide a complete ‘end to end’ manufacturing service.

All products are individually inspected and tested to IPC-A-610 standards to ensure 100% functionality. We also use extensive in-house test equipment including high level metering, storage oscilloscopes and signal generators.

IPC_logo_610certSpe_2c

All of our advanced test gear can also be linked to a computer for data logging and automated testing procedures.

Services Include

  • Full ‘end to end’ product manufacture.
  • Cable and wiring loom assembly.
  • Electro mechanical assembly.
  • Individual unit testing and inspection, including support for automated testing and data logging.
  • ‘Box build’ and panel assembly work.
  • Support for products ranging from low voltage/battery powered through to 3 phase industrial installations.
  • 30+ years of experience manufacturing high reliability and high quality products.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Test and Inspection

All products manufactured at our premises are subjected to rigorous inspection and testing throughout the production process. All PCB’s are subjected to a full visual inspection prior to assembly. Following assembly boards are inspected following IPC-A-610 standards.

Products are then tested for 100% functionality prior to shipping. For testing we use our own custom built test rigs, interfacing with a range of automated test equipment, and also develop bespoke testing software routines (including logging) where applicable.

We do not carry out any batch testing on products manufactured at our premises at any stage of the assembly process.

With 40 years of manufacturing experience, whether building a one-off prototype, or a production run of thousands of units, you can be assured that your project will be manufactured and tested to the highest standards.

Facilities to

  • Load and edit Gerber files if modifications to an artwork produced elsewhere are required.
  • Import mechanical drawings into our CAD system to enable PCB’s to be fitted into unusual spaces.

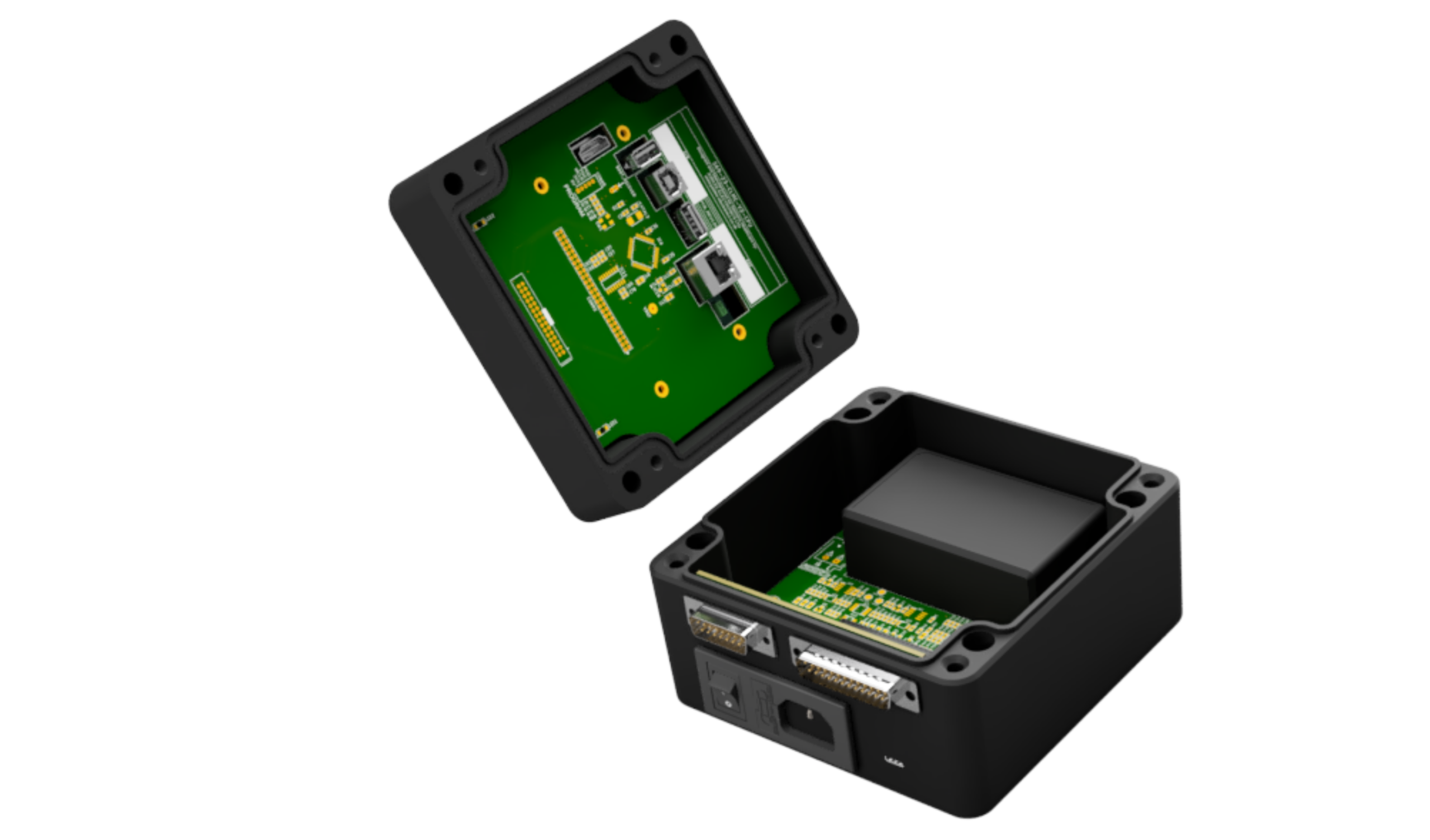

  • Output 3D images of a PCB design.
  • Modify existing PCB artworks, with support for a wide range of file formats.

Interested to hear more?

Get in touch:
sales@jubilee-electronics.co.uk
Tel: +44 (0) 1909 591612

Rapid Prototyping

All design work at Jubilee Electronics is undertaken with the end product and manufacturing process in mind.

We work in close cooperation with our clients to ensure their requirements are met through all the stages of a products development.

With facilities to design, develop, prototype and manufacture in house, the development process of a project at Jubilee Electronics is quick and efficient. We pride ourselves on the quick turnaround we provide from a projects commencement, through to the production of an initial prototype.

Enclosures, assembly details, wiring etc. are all carefully considered from a projects inception, ensuring that when a design is complete, it can easily be transferred through to production.

We also work with local test houses, where necessary, to carry out any EMC or compliance testing required for a product to be brought through to production.

All selected components and technologies implemented on a design are carefully chosen to ensure years of use and reliability.

Please see our Gallery area for further information and examples.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Feasibility Study

A Feasibility Study can save you time and money as you develop your new product.

It can also be used as a valuable tool if looking to secure additional or external funding for your project.

We use our 40+ years of design and manufacturing experience to help reduce and mitigate the risks your project may face through the design, development and manufacturing stages.

If you would like to discuss a Feasibility Study for your project please do not hesitate to contact us.

Technical Analysis

Design + Development Timeline Estimate

Design + Development Cost Estimate

Manufacturing Cost Estimate

Technical Analysis

We work with you to define and establish a clear set of product features and functions.

We then work with you to establish the key market differentiators for your product.

We then narrow down the functionality and differentiators of your project, determining key deliverables vs ‘value added’ functions and features.

This leads to us establishing a technical specification for your project, where we determine the core technologies, components and hardware required to successfully design and develop your product.

This specification also includes a review of the hardware and software design approach, and consideration of other key factors requiring careful consideration (power consumption, size & weight, mechanical construction, environmental tolerance, safety, immunity & EMC compliance requirements etc.)

We utilise our 40+ years of electronic engineering and product development expertise to determine and devise a suitable technical specification and key deliverables for your new project.

Feasibility Report Includes

  • Determine key product requirements and establish ‘value added’ features.
  • Determine core technology, component and hardware requirements.
  • Research and evaluate competitor products (where necessary).
  • Plan for design scalability and ‘future proofing’/risk mitigation of component selection and design approach.
  • Review and evaluate hardware and software design approaches.
  • Review and advise on general product and mechanical design requirements.
  • Identify compliance requirements and applicable standards.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Design + Development Timeline Estimate

Electronic design is complicated, multifaceted and time consuming.

Projects typically require hardware, software, product and mechanical design resources all collaborating successfully to develop an initial idea into to a commercially viable product.

Breaking a project down into work phases and hard (required by statutory standards)/soft design requirements help greatly to devise a project timeline and establish key milestones.

We also review compliance and standards requirements, and use these together with project milestones to determine key risk areas of your development cycle, as overlooking any potential design risk/challenge can lead to significant bottlenecks in a projects development (particularly at latter compliance testing stages).

This work gives you a ‘roadmap’ that can be followed to ensure your project is both on time, on budget, and to also ensure that no work has been overlooked or neglected at any key point in the products development.

We utilise our 40+ years of electronic engineering and product development expertise to help devise a suitable project timeline and key milestones for your new project.

Feasibility Report Includes

  • Determine key project milestones.
  • Establish design and development project phases.
  • Devise ‘Gateway’ design review stages.
  • Determine proposed project timeline.
  • Determine independent project phases and time estimates.
  • Analyse and target key risks in project development timeline.
  • Review compliance/testing requirements and determine time estimates.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Design + Development Cost Estimate

Electronic product development can be expensive and fraught with risk if not undertaken in a systematic manner.

A Feasibility Study can help you prepare and plan your budget to bring a project successfully through to completion.

Utilising the Design and Development timelines established as part of the feasibility report, we use this data, in combination with associated estimate hardware, component and prototyping costs, to establish budget estimates for all phases of the projects design and development (including the final compliance and testing stages, if required for CE marking for example).

This helps you to plan ahead where a higher budget needs to be allocated, or if necessary where compromises/reduction in scope of features may be required to meet a pre-determined project budget, while still delivering a successful product.

Establishing indicative project costs can also be used as a valuable tool if looking to secure additional funding for your project, reassuring investors that important first steps have already been undertaken to establish design and development cost estimates.

Feasibility Report Includes

  • Budget estimate overview in accordance with project plan.
  • Electronics Hardware Software Design and Development cost estimates.
  • Prototype manufacturing cost estimates.
  • Resource (components, hardware, prototyping tools) cost estimates.
  • Compliance cost estimates.
  • Testing and Certification (UKAS where applicable) cost estimates.

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Manufacturing Cost Estimate

We have always had manufacturing facilities in-house, and we have great experience (40+ years) in avoiding designing over complicated products that are overly complex to assemble, have overcomplicated component count/BOM requirements, or are non-efficient to test and QA validate.

Using data gained from the Technical Specification and Design and Development cost and time analysis feasibility stages, we can determine estimate production unit costs.

We also use our 40+ tears of manufacturing experience and expertise, and close long lasting ties with component and parts suppliers, to further help determine and refine our production cost estimates.

Non-Recurring Engineering (NRE) costs that may also be applicable at the manufacturing stage of a project are also determined at this stage of a Feasibility Study.

With our combined design and manufacturing expertise, we can both provide a production unit cost estimate, and a project plan from the outset to reduce and mitigate unnecessary design choices that may later cause an increase in final unit cost.

Feasibility Report Includes

  • Production Unit cost estimate (Inc. quantity discount estimates).
  • NRE tooling and manufacturing setup cost.
  • Test routine requirements and process analysis.
  • QA validation requirements and process analysis.
  • Packaging cost estimates (Inc. NRE setup costs).
  • Scope for cost reduction (alternative components, parts, hardware etc.)

Interested to hear more?

Get in touch:

sales@jubilee-electronics.co.uk

Tel: +44 (0) 1909 591612

Gallery

PCB Design and Manufacture

We design and assemble all our PCB's in house, using a combination of automated SMT machiner and hand assembly techniques.

Production and Assembly

We assemble and manufacture electronic systems for a wide range of clients and industries.

Example Projects

A selection of products that we designed and manufacture for our clients.

Design Services

We offer a full range of design services to take your project from specification through to manufacture.

Our Works and Facilities

We have a range of facilities to accommodate rapid prototyping through to medium scale product manufacture.

Product Design and Prototyping

We have a wide range of in-house facilities to facilitate your product design and prototyping requirements.

About us

Jubilee Electronics was founded in 1976, taking the name from our base at Jubilee Farm, Blyth, Nottinghamshire, where we are still located. The traditional Nottinghamshire redbrick buildings of Jubilee Farm form an ideal environment for the relaxed but efficient way in which we operate.

We originally established ourselves as a company renowned for our fast, discrete and efficient design and development work on control systems for use in the industrial sector.

As industry in the UK evolved, we expanded our range of services and skills to design and manufacture electronic products for a wide range of sectors and applications. We are proud to be part of the UK’s rich engineering and manufacturing heritage, and use local UK based manufacturers and suppliers wherever possible. All of our work has always been undertaken in close association with our clients, with the final product always bearing the clients name, with confidentiality ensured.

If you would like to discuss how we may be able to help you with electronic design for your project, please do not hesitate to contact us.

Our Clients

Contact Us

Jubilee Electronics Ltd, Jubilee Farm, Blyth, Worksop, NOTTS, S81 8EU.

Tel: +44 (0) 1909 591 612

Send us a message

Get in touch
Send us a message and we will get back to you soon.






X
